Set up requirements & Specs

What is required for Base Zero to Rock up?

• Entry access requires 2.5m wide x 2.5m high clearance.

• Flat level site, clear access, no overhead obstructions.

• Ceiling clearance height of 10.5m when wall is raised.

• 5m frontage with a depth of 9m.

• Set up surface that can bare 2tonne of weight.

• Wall can be set up on grass, concrete, bitumen, etc.



Base Zero Mobile Rock Climbing Wall specifications.

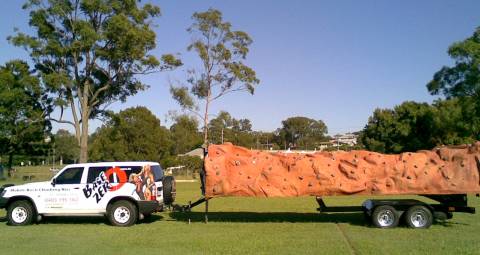

Mobile walls are transported in the lowered position and can be placed
anywhere providing we have clearance and a level stable surface.

See our specifications below:

Mobile Rock Walls

• Height (raised) -            8m

• Height (lowered) -         2.5m

• Width (towed) -              2.5m

• Length (towed) -            8.5m

• Weight -      1600kg – 1800kg approx

• Base Area (footprint) -   2.5m x 5m
